Requirements#
[box type="info-box-info"]The plugin is an add-on to Flexible PDF Coupons PRO and requires the basic plugin to work.[/box]
[box type="info-box-info"]Scanning QR codes is possible when the camera has a secure connection via a website with HTTPS or localhost.[/box]
Settings#
User - Event Manager#
The Flexible PDF Coupons - Event Ticket QR Scanner creates a new user role in the shop - Event Manager.
Go to Users → All Users → [Username] to set the user role for the people who handle the event sold in your shop.
The Event Manager role has permissions to:
- Viewing WooCommerce coupons
- Scanning QR codes
- Changing the status of WooCommerce coupons
QR code on coupon template#
[caption id="attachment_174063" align="aligncenter" width="961"]
PDF Coupons > Templates > QR Code[/caption]
Go to PDF Coupons → Templates → [Template name] or Add new template.
In the column with the template tools (screenshot above), you will find the option to add a QR code to the coupon template. You may add it by click, drag & drop it to right place and adjust the size. Save changes.
QR code on the PDF#
[caption id="attachment_174072" align="aligncenter" width="885"]
Products > Product > PDF Coupon > Coupon template[/caption]
To generate a PDF with a QR code, you will need to configure the product using the Flexible PDF Coupons PRO plugin settings. See how to do it →.
During setup, select the Coupon template containing the QR code (screenshot above).
The purchase of a product marked as PDF Coupon, will create a WooCommerce coupon code, which will also be a QR code.
[box type="info-box-info"]The Flexible Coupons plugin will create a coupon code each time a ticket is purchased, which can then be used in-store. If you want this to be disabled, limit the coupon to one product, e.g., with stock zeroed out[/box]
Use of QR code - change of coupon status#
You can mark a WooCommerce coupon as used in three ways:
Scanning QR code#
[box type="info-box-info"]Scanning the QR code is done using the camera on a mobile phone, computer, or other device. A camera is required.[/box]
[caption id="attachment_174081" align="aligncenter" width="346"]
PDF Coupons > QR Scanner > Scan QR Code[/caption]
To scan the code:
- Go to PDF Coupons → QR Scanner → Scan QR Code
- Place the QR code in the camera frame
The scanner will verify the QR code, display a verification message.
Manual code verification#
[caption id="attachment_174083" align="aligncenter" width="372"]
PDF Coupons > QR Scanner > Scan QR Code > Insert code manually[/caption]
To verify the voucher code manually:
- Go to PDF Coupons → QR Scanner → Scan QR Code → Insert code manually
- Enter the code number in the box
The plugin will validate the coupon code and display a verification message.

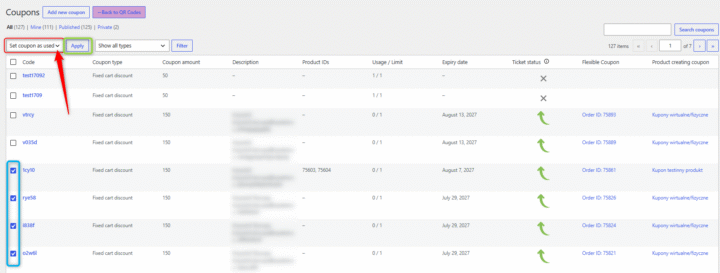

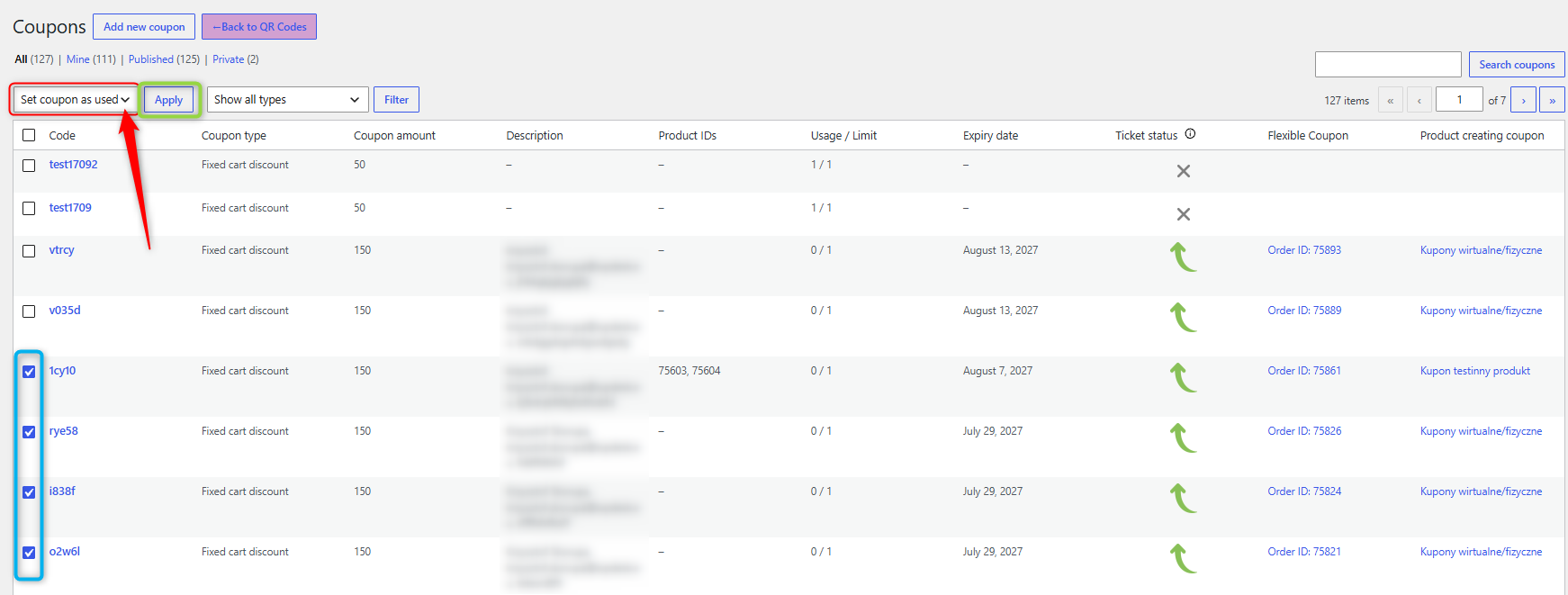

Changing status through mass action#
To manually change the status of a coupon code:
- Go to Marketing → Coupons
- Select the coupons you want to mark as used (you can search for a coupon using the coupon search bar)
- Select Set coupon as used in mass actions
- Click Apply
The plugin will validate the coupon code and display a verification message.
Coupon statuses available#
- Green arrow - the coupon has not been used even once e.g., 0/1
- Blue arrow - the coupon has been used at least once but the use limit has not been reached e.g., 1/2
- Red arrow - the coupon has been fully used e.g., 1/1
- Gray cross - the coupon is not a coupon with a QR code
